A&D EK-AEP Intrinsically Safe Compact Balance, small and large weighing plate options. On white background

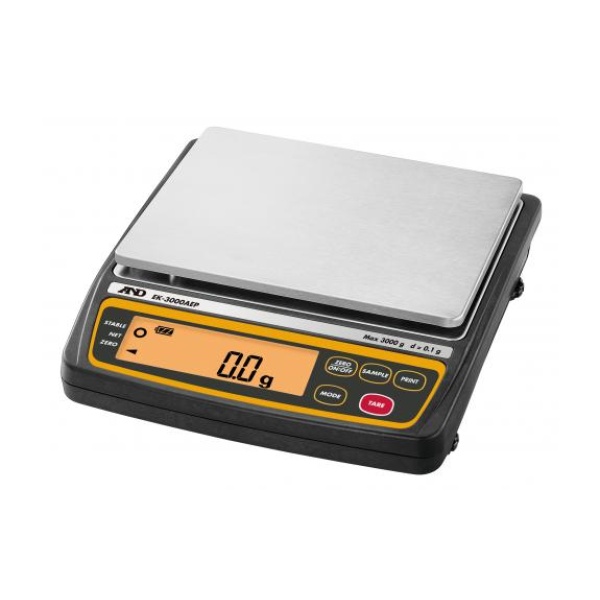

A&D EK-AEP with backlight on

A&D EK-AEP Intrisically Safe Compact Balance ATEX Zones 1/21 + 2/22

Our Price: £1,040.00 + VAT (£1,248.00 inc VAT)

For Precise Weighing In Potentially Hazardous Environments

Do you require a calibration certificate – traceable to National Standards? (Small Scale/Balance)

Price: £40

Description

The A&D EK-AEP Intrinsically Safe Compact Balance, Affordable, Convenient Explosion-Protected ATEX Balance With Optical Data Output Capability

The A&D EK-AEP Intrinsically Safe Compact Balance series of internationally certified, intrinsically safe*1  balances is compact, lightweight and economical.
Due to it’s simple design and compact nature The A&D EK-AEP Intrinsically Safe Compact Balance brings ease of use and security to anyone who needs to perform precise weight measurement in potentially explosive (ATEX) and hazardous environments.
The A&D EK-AEP balance uses off the shelf batteries that are widely available that gives the balance a working life of approx. 250 hours with the backlight off.
This means that there is no need to secure power from a safe area via a safety barrier, allowing you to avoid the expense and inconvenience of special ATEX wiring installed by a qualified electrician. It also means that you can easily take and use the balance wherever needed and performing weighing functions across the site.
Typical environments for use for this balance would be hazardous chemicals, petrochemical, pyrotechnics and liquid ATEX weighing.
The A&D EK-AEP Intrinsically Safe Compact Balance is equipped with an optical connector from which it can output weighing results to a device in a distant safe area via optical fibre cable and an AD-1611 optical communication adapter.*2.Ratings below for ATEX classified areas:

ATEX Zones 0/1/21/22

IECEx
ATEX

FM/FMc (NEC500)
FM/FMc (NEC505)

Flammable gases/
vapours present
continuously

Flammable gases/
vapours present
intermittently

Flammable gases/
vapours present
only accidentally

IECEx: Ex ia op is IIB T3 Ga

ATEX: II 1G Ex ia op is IIB T3 Ga

FM/FMc (NEC505): Class I, Zone 0, AEx/Ex ia op is IIB T3

FM/FMc (NEC500): IS / I / 1 / C,D / T3C

MPN:

EK-300AEP

EK-3000AEP

EK-12KAEP

Useful Features:

  • GMP/GLP compliant output to meet documentation requirements
  • Auto power OFF function to save battery power
  •  Easy-to-read LCD display with backlight (16 mm character height)
  •  Hygienic and chemically resistant stainless steel (SUS304) weighing pan
  •  Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to pcs (counting mode), % (percent mode) and SG (specific gravity)*6
  •  Comparator function for faster and more accurate filling, packing, sorting, etc.
  •  Response characteristics adjustable depending on the degree of drafts and vibrations at the location
  •  Security ring for wire-locking the balance to prevent theft

Features:

Compact, lightweight and extremely affordable while providing excellent explosion protection
 Equipped with an optical connector for data output via optical fiber cable and an AD-1611 optical communication adapter.*1
 Battery operation*2 (approx. 250 hours) for optimal portability without the need for complicated wiring via a safety barrier
 GMP/GLP compliant output to meet documentation requirements
 Easy-to-read LCD display with backlight (16 mm character height)
 Auto power OFF function to save battery power
 Hygienic and chemically resistant stainless steel (SUS304) weighing pan
 Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to SG (specific gravity)*3
 Counting mode with Automatic Counting Accuracy Improvement (ACAI) functionality
 Percent mode function for target weighing, checking the sample variation, etc.
 Comparator function for faster and more accurate filling, packing, sorting, etc.
 Response characteristics adjustable depending on the degree of drafts and vibrations at the location
 Security ring for wire-locking the balance to prevent theft

Specifications:
      Model      EK-300AEP      EK-3000AEP        EK-12KAEP
Capacity 300 g 3000 g 12 kg
Readability 0.01 g 0.1 g 1 g
Weighing pan Ø110 mm 133 × 170 mm

Downloads

PDF-Download

We endeavour to deliver your goods to you as fast as we can. A large percentage of our orders are delivered in 3 - 5 working days (all mainland UK postcodes except IV, AB and KW) but some goods can take longer if they are delivered direct from the manufacturer or if the item is made to order. Please note, IV, AB and KW postcodes and non-mainland UK including Northern Ireland can take longer. Please give us a call if your order is urgent to verify the delivery time or see if a faster delivery is possible (additional costs may apply for larger orders).

The following delivery charges may apply per order:
  • £12.00 + VAT – Mainland UK
  • £30.00 + VAT – UK non-mainland

Reviews

There are no reviews yet.

Be the first to review “A&D EK-AEP Intrisically Safe Compact Balance ATEX Zones 1/21 + 2/22”

Your email address will not be published. Required fields are marked *

Key Accessories

Similar products

Frequently Asked Questions

Please see below for answers to frequently asked questions.

A calibration certificate proves the accuracy of your weighing equipment. It is very likely that if accuracy matters in your workplace, certification will be required by your industry regulators. They are straightforward to get hold of though. Just ask our team.

If you are trading or transacting anything by weight, you will probably need to demonstrate your weighing equipment is verified for trade use. This gives your customers confidence in your business and will make sure buying and selling run smoothly. We can help get you with relevant approvals for your equipment.

The answer will vary depending on how your equipment is used. As a minimum, we typically recommend once a year but our team can provide advice based on your individual circumstances.

The International Organization of Legal Metrology (OIML) has established standards for the classification of calibration test weights. Varying from E0 & E1, which are the most accurate to M2 which are commonly used for calibrating platform scales, floor scales and other industrial weighing instruments.

As a rough guide we have listed desired accuracy against class below.

+/- 0.1% – UNclassed Proof Load Test Weights
+/- 0.05% – M3 (Check/calibrate coarse scales)
+/- 0.005% – M1 (Check/calibrate standard scales)
+/- 0.0015% – F2 (Check/calibrate portable balances)
+/- 0.0005% – F1 (Check/calibrate precision balances)
+/- 0.00015% – E2 (Check/calibrate analytical balances)

The choice of weight class depends on the intended use and the level of accuracy required for a particular application. If you’re unsure, talk to our team who can advise you on the right class for your equipment.

If you’re sending a scale back to us for recalibration, it is ideal to use the original packaging. If this is not available choose a sturdy well-padded box to avoid shocks. Where possible, protect the load sensor by removing the weighing pan and any under-pan support and pack these separately in the box. You may be able to use the equipment’s locking pins or screws too.

Do ensure all the paperwork, including your contact details, is included to ensure we can return it once calibration is complete.
